Job Automator – Architecture Overview

The Job Automator system is made up of several cooperating components that together enable web-based workflow automation in the Domain Services ecosystem.

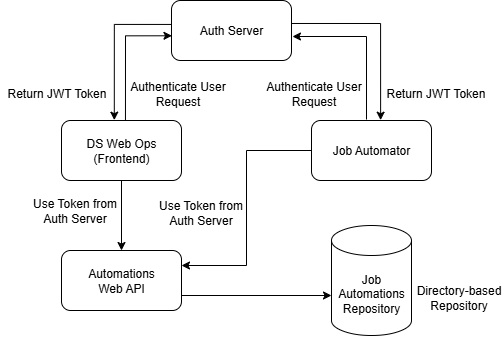

Job Automations Architecture

Big Picture

Five key components:

  1. Auth Server Acts as the Authentication & Authorization provider. It handles sign-in and permission checks for DS Web Ops and all backend services

  2. DS Web Ops The web UI where teams create/edit automations, enable/disable or manually trigger them, and review history/progress.

  3. Automations Web API Central service that manages automation definitions (create/edit/delete), exposes an extensible trigger catalog (plugin-style, so new trigger types can be added without rebuilding the UI), and enriches each automation with its last run job + IsMet via scalars and jobs.

  4. Job Automator A background worker that regularly checks automations, evaluates triggers, creates jobs in the right Host Group when the triggers IsMet, and updates scalars.

  5. Automations Repository Stores automation definitions as simple files (one JSON per automation) so changes are reviewable and easy to roll back.

Typical responsibilities & ownership:

  • Security/Platform → Auth Server
  • Operation → DS Web Ops
  • Backend/Platform → Automations Web API & Job Automator
  • Team owning automation content → Automations Repository (with PR/review policy)

Persistence & Host Groups (where things actually live)

The system intentionally splits data across purpose-built stores. This lets you scale jobs independently per host group and keep automation definitions simple and portable.

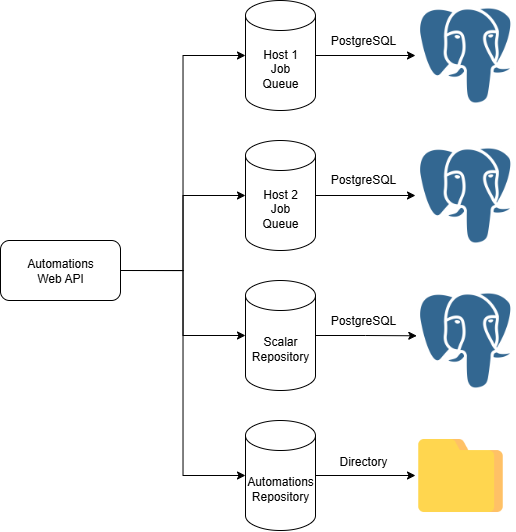

Persistence Topology

Storage map

Data Where it’s stored Who writes Who reads Config keys
Automations (definitions, groups, triggers, params, enable switch) Directory via DirectoryAutomationRepository (one JSON per automation) Automations Web API (on create/update/delete) Automations Web API, Job Automator JobAutomations (absolute path)
Scalars (progress flags, last-met, chaining helpers, last job id ref) PostgreSQL (shared “workflow” DB) Job Automator Automations Web API (for enrichment), DS Web Ops (via API) Postgres-scalars:ConnectionString
Jobs (queued/executed tasks) PostgreSQL per Host Group (one DB per host) Job Automator (writes to the host selected by the automation’s HostGroup) Automations Web API (via ReadOnlyCompositeJobRepository), DS Web Ops Postgres-jobs (array of { Id, JobRepositoryConnectionString })

Many hosts supported. The Postgres-jobs array can define any number of host groups (e.g., wf-jobs-Minion, wf-jobs-Titan, …). Add/remove entries to scale horizontally.

How host routing works

  1. Each Automation sets HostGroup (e.g., "Minion").
  2. Job Automator creates the job in the repository registered under that host group id (from Postgres-jobs).
  3. Automations Web API uses a ReadOnlyCompositeJobRepository to read from all host job DBs, so it can always show the last job regardless of where it ran.

Minimal config recap (excerpt)

{
  "JobAutomations": "C:\\Services\\JobAutomator\\Automations",
  "Postgres-scalars": {
    "ConnectionString": "Server=localhost;Port=5432;Database=JobWorkflow;User Id=Solutions;Password=P@ssword!;"
  },
  "Postgres-jobs": [
   {
      "JobRepositoryConnectionString": "Server=localhost;Port=5432;Database=JobMinion;User Id=Solutions;Password=P@ssword!",
      "Id": "wf-jobs-Minion"
   },
   {
      "JobRepositoryConnectionString": "Server=localhost;Port=5432;Database=JobTitan;User Id=Solutions;Password=P@ssword!",
      "Id": "wf-jobs-Titan"
   }
  ]
}

In your automation JSON, set:

"HostGroup": "Minion"

and Job Automator will write the job to wf-jobs-Minion.

Default host roles: The system comes preconfigured with two host groups:

  • Minion – For smaller, lightweight jobs that require minimal resources.
  • Titan – For large, resource-intensive jobs that need significant processing power.

This default split helps balance workloads and ensures that heavy jobs do not impact smaller, frequent automations.

How It Works – High Level Flow

  1. User Login
    • User opens DS Web Ops.
    • DS Web Ops authenticates via Auth Server and obtains a JWT token.
  2. Automation Management
    • From DS Web Ops, users create/update automations (form or JSON editor).
    • Automations Web API persists them in the Automations Repository and exposes trigger schemas (MEF) for dynamic forms.
  3. Background Execution
    • Job Automator periodically polls Automations Web API for current definitions.
    • For each automation, it evaluates trigger conditions.
    • If conditions are satisfied:
      • A new job is created in the appropriate host group (mapped by HostGroup).
      • Scalars are updated to reflect execution state and enable chaining.
  4. Monitoring & Diagnostics
    • DS Web Ops displays automation status, last job, and history using the Automations Web API (and related Domain Services endpoints).

Job Automator – Runtime

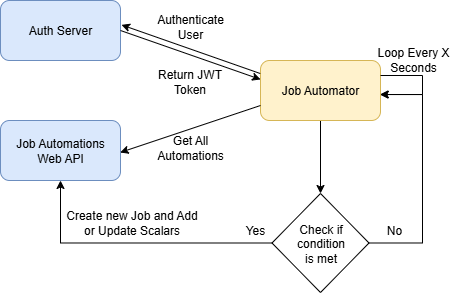

Job Automator Runtime

Flow (from the Job Automator’s perspective):

  1. Authenticate against Auth Server to obtain/refresh a token (handled by AccessTokenProvider in the template).
  2. Read automations from Automations Web API (wrapped by CachingAutomationRepository to avoid unnecessary calls).
  3. Evaluate each automation’s triggers with AutomationExecutor.
    • Writes per-trigger “Is Met” scalars for observability.
  4. If met:
    • Route to a host-specific Jobs endpoint via JobServiceFactory (maps HostGroup → {Jobs}/api/jobs/{serviceKey}).
    • Create a new job; prevent duplicates by checking the Last Job Id scalar.
    • Write the new Last Job Id scalar.
  5. Repeat on the configured interval.

The concrete code paths for this loop live in the template under:

  • JobAutomator.Start/Stop/ExecutionTimerElapsed
  • AutomationExecutor.Execute (AND vs. expression mode)
  • JobServiceFactory.GetJobService (host-group routing)
  • ReadLastJobIdScalar / WriteLastJobIdScalar (duplicate-prevent + observability)

Caching model (Automations freshness)

The Automations Web API exposes a simple server version timestamp at:

GET /api/automations/version

This is backed by a version.txt stored next to your automations (in the same root as the directory repository). The API updates that timestamp on any Create/Update/Delete or Enable/Disable of automations.

The Job Automator keeps its own local version file (path configurable) and uses it for server-driven cache invalidation:

  • Server > Local → Invalidate in-memory cache, fetch GetAll, and rewrite local version.txt.
  • Server ≤ Local → Keep using cache (no roundtrip for definitions).

Where files live

  • Server-side version file: maintained by Automations Web API, co-located with automation JSON.
  • Automator-side version file: configured via Cache.LocalVersionFilePath in the automator’s appsettings.json.

Sequence (simplified)

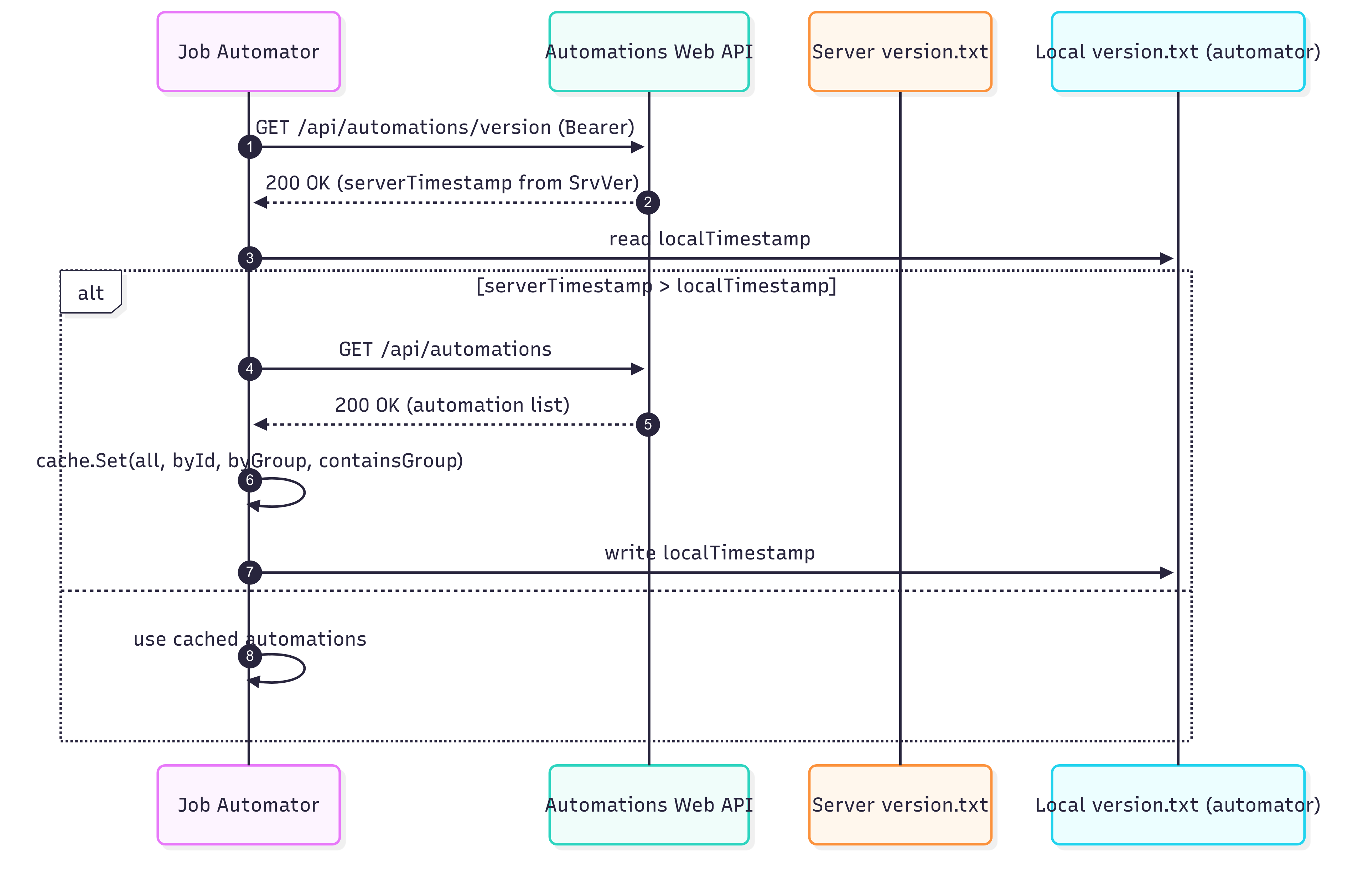

Job Automator Sequence

Minimal config for the automator cache (excerpt)

{
  "Cache": {
    "LocalVersionFilePath": "C:\\Services\\JobAutomator\\Automations\\Version"
  }
}

Notes:

  • Only LocalVersionFilePath is used; TTLs are internal in the template.
  • The version file will be auto-created if it doesn’t exist.
  • /api/automations/version requires a Bearer token (issued by the Auth Server).
